Introduction
Constructing tanks with large storage capacities has always been a major task. It consumes a lot of time, money and effort to build and install such tanks and it gets tougher with the terrain.Installation in mountainous areas is a nightmare. This is where Sintex SMC panel tanks make a difference.
Sintex, the leader in plastic products and innovations brings you SMC panels that overcome all the problems associated with high capacity tanks. Available in cargo capacities ranging from 500 litres to 12,00,000 litres and more, these tanks have been in use all over the world, for the last three decades and they are preferred over RCC and MS tanks.
These tanks are absolutely maintenance-free and come with life expectancy of over 50 years. They are available in knocked-down state in the form of light-weight Sintex SMC panels of standard size of 1 m x 1m, 1mx0.5 m, 0.5 m x 0.5 m and 1mx 2 m, and hence can be carried even to the most difficult terrains by any locally available transport including bullock carts or mules.
Panels are made from advanced composite plastic, comprising glass fibre reinforcement and formulation of selected resins. These have flanges on four sides and large size tanks are assembled by bolting the panels on flanges using special sealant and gaskets to form leakproof construction. The Sintex SMC panel tanks can be quickly and conveniently assembled and installed using conventional tools and labour.

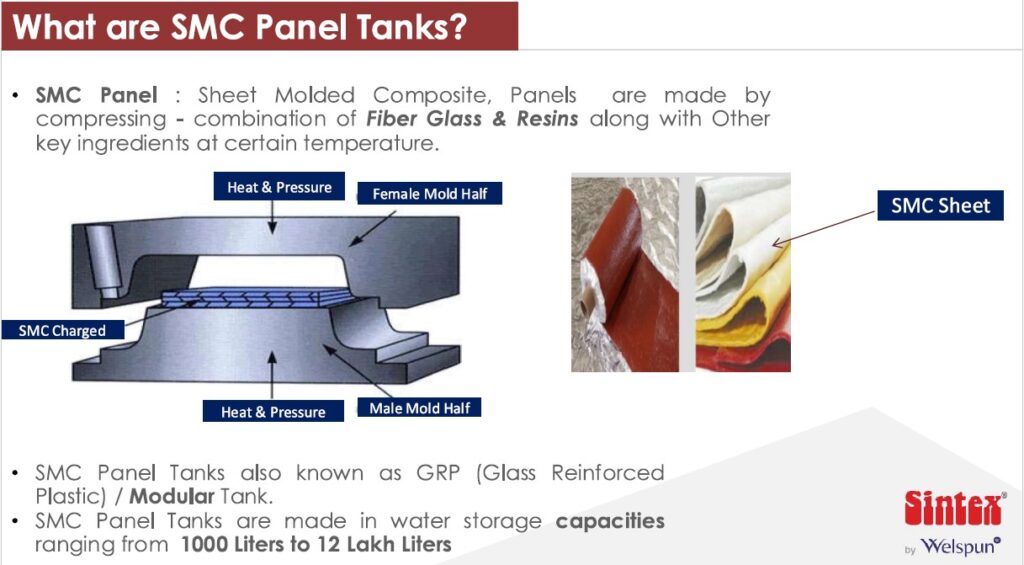

What are SMC Panel tanks?
SMC Panel Tanks (Sheet Moulding Compound Panel Tanks) are modular water storage tanks made from high-strength composite materials.
They are assembled on-site using factory-moulded SMC panels that are bolted together to form tanks of different sizes and capacities — from a few thousand liters to several lakh liters.

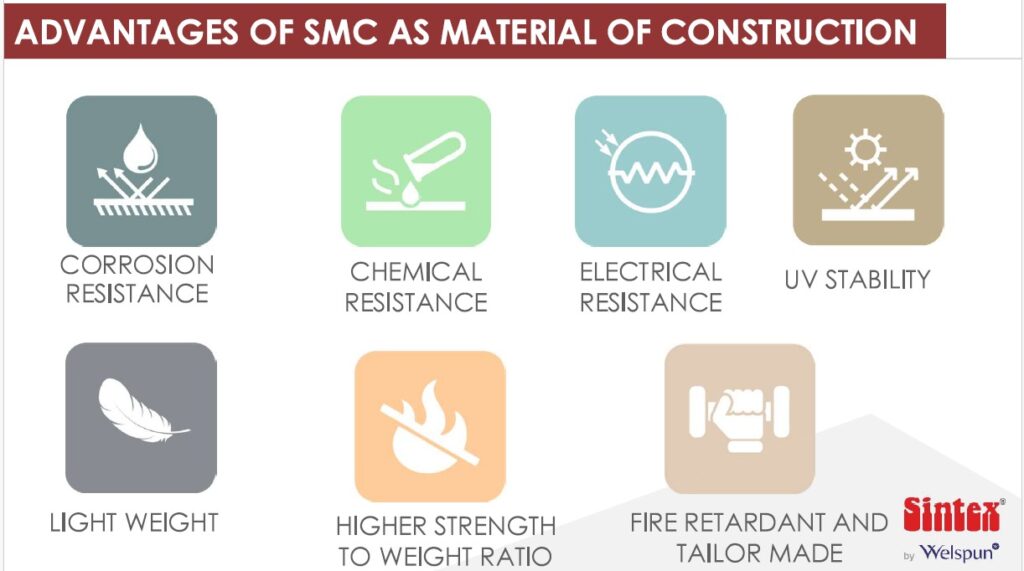

Features & Benefits of Sintex SMC Panel Tanks
- Lightweight yet extremely strong and durable SMC panels.
- Maintains water quality for longer durations without contamination.
- Easy to handle and transport — modular design for convenient logistics.
- Simple installation using conventional tools; user-friendly for plumbers and technicians.
- Flexible assembly — can be installed in any required size or capacity.
- 100% weather-resistant, waterproof, moisture-proof, and rot-proof.
- Safe for drinking water storage – made from FDA-approved, food-grade materials.
- Easy to dismantle, relocate, or resize as per site requirements.
- Suitable for all climates, from sub-zero temperatures to extreme heat.
- Proven durability – service life of over 50 years, even in harsh environments.
- Versatile applications – ideal for: Water storage and supply in dry regions.
- Wastewater and effluent treatment plants.
- Industrial use in chemical, pharmaceutical, and corrosive environments.

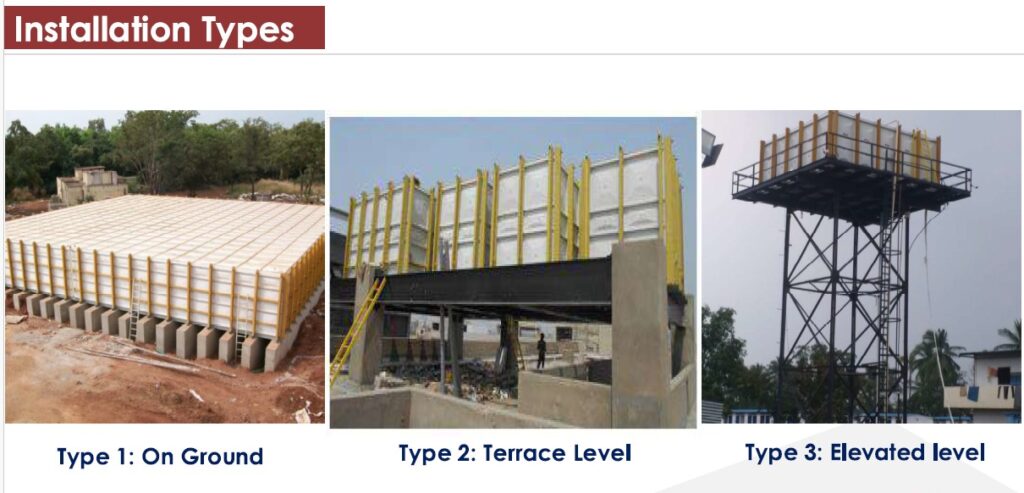

Installation Types of Sintex SMC Panel Tanks
- Sintex SMC Panel Tanks can be installed in three different configurations depending on site conditions, space availability, and project requirements.
- On Ground Installation
- Terrace Level Installation
- Elevated Level Installation
Tank & Panel Dimensions
Sintex SMC Panel Tanks are designed with modular panels that can be easily assembled in various sizes to suit site requirements. Each tank is made up of standard bottom, top, and side panels, ensuring flexibility and ease of installation.
For example, a 30,000-liter (30KL) tank can be constructed in multiple size combinations such as 5m × 3m × 2m (L×B×H) or 6m × 5m × 1m (L×B×H) — both offering the same capacity.
This flexibility allows the Length, Breadth, and Height (LBH) of the tank to be modified as per the available space at site, ensuring convenient customization and easy installation.
Capacity Range
Sintex SMC Panel Tanks are available in a wide capacity range from 1,000 liters to 12,00,000 liters (12 lakh liters), designed to meet diverse water storage requirements for domestic, commercial, and industrial applications.
| Parameter | Range / Specification |
|---|---|
| Length | 1 meter to 20 meters |
| Width | 1 meter to 20 meters |
| Height Options | 1.0 m / 1.5 m / 2.0 m / 2.5 m / 3.0 m |
| Panel Type | Available Sizes |
|---|---|
| Bottom & Top Panels | 1 × 1 meter |
| Side Panels | 0.5 × 1 meter, 1 × 1 meter, 2 × 1 meter |
| Manhole | Diameter 600 mm |
Properties of SMC Panels
All Sintex SMC Panels are manufactured and tested in compliance with BIS standards, ensuring exceptional strength, durability, corrosion resistance, and safe water storage performance. Each panel is designed to maintain structural integrity and hygiene even under extreme climatic conditions.
| Property | BIS Acceptance Criteria |
|---|---|
| Tensile Strength (MPa) | 70 (Min) |
| Bending Strength (MPa) | 100 (Min) |
| Elastic Modulus in Bend (MPa) | 6000 (Min) |
| Glass Content (%) | 25 (Min) |
| Barcol Hardness | 50 BHU |
| Water Absorption (%) | 0.5 (Max) |
| pH Range | 5 – 8 |
| Color | White (Sintex Standard) |
| BIS Certification | ISI 14399:1996 (Part 1 & 2) |
🏅 Important Certifications of Sintex SMC Panel Tanks
Sintex SMC Panel Tanks are designed and manufactured under strict Indian and international quality standards, ensuring safety, reliability, and long service life. Each tank undergoes rigorous testing and certification to meet structural, hygienic, and performance requirements.
| Certification / Standard | Description / Compliance |
|---|---|
| ISI Certification – IS 14399:1996 (Part 1 & 2) | Certified by Bureau of Indian Standards (BIS) for design, material, and performance of SMC panel tanks. |
| IGBC (GPSBL413022) | Sintex SMC Panel tank are Certified by IGBC |
| ISO 9001:2015 | Ensures that manufacturing, quality control, and management systems meet global quality standards. |
| FDA Approved Materials | All materials used are food-grade and safe for potable water storage. |
| WRAS / NSF Equivalent | Compliance with international drinking water standards, ensuring hygiene and non-toxicity. |
| Hydrostatic Pressure & Leak Test Certification | Each tank is tested at factory level for pressure resistance and leak-proof performance. |
| UV Stability & Weather Resistance Tests | Certified for long-term exposure to sunlight and varying climatic conditions. |
| CIPET- FIRE Certification | Tested and approved by the Central Institute of Plastics Engineering & Technology (CIPET) for fire-retardant properties and material strength. |
